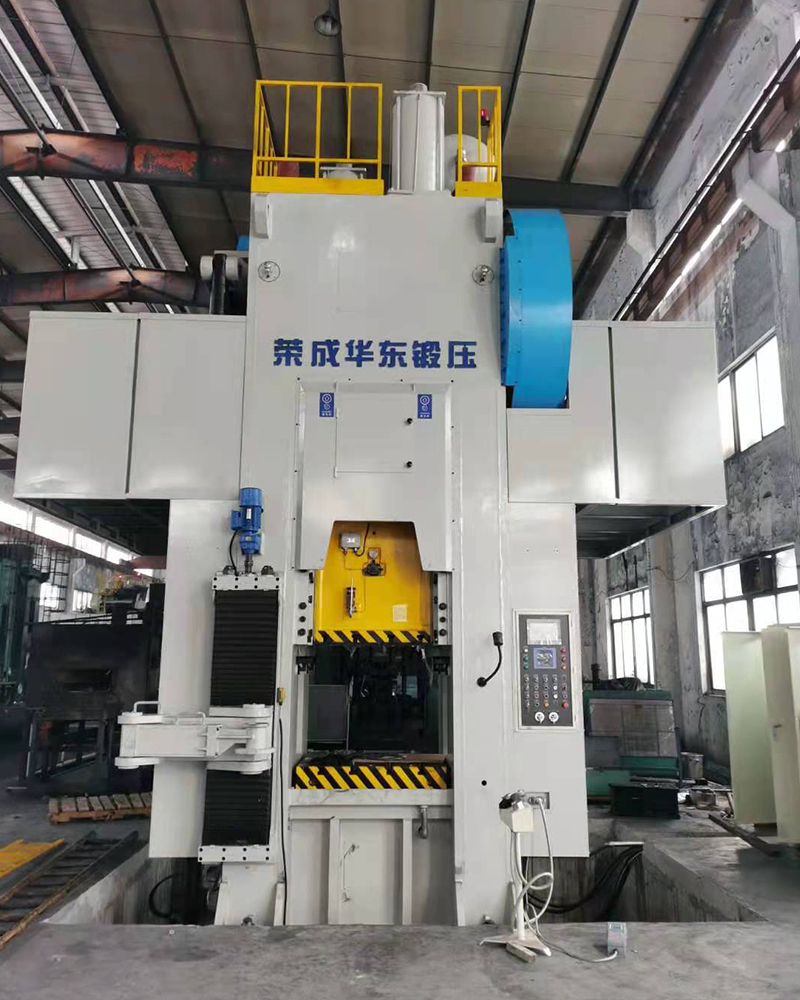

        JWD31系列長行程溫鍛壓力機

        JWD31 series long stroke warm forging press

        主要功能和特點:

        Main Structure Features:

        采用整體鋼板焊接機身,保證機床有足夠高的剛度

        Entire plate is welded to press frame, ensuring sufficient rigidness of it

        傳動系統采用兩級或三級傳動,曲軸偏心式結構

        It has a two-stage or three-stage driving system with a crankshaft eccentric center structure

        采用分體式干式氣動摩擦離合器,慣量小、溫升低、壽命長、維修方便

        Split dry pneumatic friction clutch is applied, characterized by small inertia, little temperature rise, long service life and easy maintenance

        整機剛度相比普通鍛造壓機有大幅的提高,滑塊行程大,公稱力行程大,適合各種溫鍛零件的鍛造

        Compared with regular forging press, the rigidness of press has been greatly improved, with large stroke of cam block and nominal pressure, suitable for forging all kinds of warm forging parts

        具有長行程和高剛度的機械下頂料裝置,特別適合長的杯桿形零件的鍛造,例如等速萬向聯軸節的溫鍛

        Mechanical below feeding device long stroke, high stiffness, very suitable for long "cup" shaped parts forging, for example, constant temperature universal joint warm forging.

        主電機采用變頻調速電機,以合適的滑塊速度進行鍛造,同時為低速調模提供了方便

        Main electric machine uses electric machine of frequency control of motor speed, forged with suitable cam block speed, providing convenience for adjusting mold

        滑塊運動精度高,具有解悶車功能

        Cam block moves in high precision, with function of dismissing shutdown

        濃油強制自動定時定量潤滑系統,保證機床有充足的潤滑

        Concentrated oil gives mandatory automatic lubrication to system regularly and in fixed quantity, guaranteeing sufficient lubrication to machine tool

        整機采用PLC集中控制,設有噸位儀、軸溫檢測等多種安全措施,保障壓力機的運行安全

        Entire press is under centralized control of PLC, with multiple safety measures of tonnage meter and axis temperature testing, ensuring operation safety of the press


             型號(type)



        參數(Specification)

        JWD31-400

        JWD31-500

        JWD31-630

        JWD31-800

        JWD31-1000B

        公稱力(千牛)

        Nominal pressure(KN)

        4000

        5000

        6300

        8000

        10000

        公稱力行程(毫米)

        Nominal pressure stoke(mm)

        10

        10

        10

        10

        8

        滑塊行程長度(毫米)

        Slide stroke(mm)

        400

        450

        500

        500

        500

        滑塊行程次數(次/分鐘)

        Strokes of slide(spm)

        2432

        2432

        2230

        2230

        2230

        最大裝模高度(毫米)

        Max. die height(mm)

        750

        900

        1000

        1100

        1050

        裝模高度調節量(毫米)

        Die height adjustment(mm)

        120

        120

        120

        120

        120

        導軌間距離(毫米)

        Distance between gilbs(mm)

        710

        760

        810

        910

        1010

        滑塊底面尺寸

        (毫米)

        Slider bottom size(mm)

        前后F.B

        700

        800

        850

        900

        950

        左右L.R

        900

        950

        1000

        1100

        1200

        工作臺板尺寸

        (毫米)

        Bolster area(mm)

        前后F.B

        900

        950

        1000

        1100

        1200

        左右L.R

        900

        950

        1000

        1100

        1200

        上頂料

        downward ejector

        行程(毫米)

        stroke(mm)

        35

        40

        50

        60

        /

        頂料力(千牛)

        PowerKN

        40

        50

        60

        80

        /

        下頂料(機械)

        Upward ejector

        (mechanical)

        行程(毫米)

        stroke(mm)

        80

        110

        130

        130

        130

        頂料力(千牛)

        PowerKN

        300

        400

        550

        700

        800

        主電機功率(千瓦)

        Main motor power(KW)

        45

        55

        75

        90

        110

        壓機外形尺寸

        (毫米)

        Overal dimensions(mm)

        前后F.B

        2710

        2850

        2995

        3150

        3990

        左右L.R

        3270

        3550

        3985

        4220

        5810

        壓機地面以上尺寸(毫米)

        Height above floor(mm)

        5480

        5750

        6100

        6450

        6960




             型號(type)



        參數(Specification)

        JWD31-1000

        JWD31-1250

        JWD31-1600

        JWD31-2000

        公稱力(千牛)

        Nominal pressure(KN)

        10000

        12500

        16000

        20000

        公稱力行程(毫米)

        Nominal pressure stoke(mm)

        8

        8

        8

        8

        滑塊行程長度(毫米)

        Slide stroke(mm)

        500

        550

        550

        600

        滑塊行程次數(次/分鐘)

        Strokes of slide(spm)

        2230

        2230

        2026

        2026

        最大裝模高度(毫米)

        Max. die height(mm)

        1050

        1050

        1250

        1300

        裝模高度調節量(毫米)

        Die height adjustment(mm)

        120

        120

        120

        120

        導軌間距離(毫米)

        Distance between gilbs(mm)

        1010

        1100

        1180

        1320

        滑塊底面尺寸

        (毫米)

        Slider bottom size(mm)

        前后F.B

        950

        1050

        1200

        1300

        左右L.R

        1200

        1300

        1400

        1550

        工作臺板尺寸

        (毫米)

        Bolster area(mm)

        前后F.B

        1200

        1200

        1300

        1400

        左右L.R

        1200

        1300

        1400

        1550

        上頂料

        Downward ejector

        行程(毫米)

        stroke(mm)

        /

        /

        80

        80

        頂料力(千牛)

        PowerKN

        /

        /

        120

        160

        下頂料(機械)

        Upward ejector

        (mechanical)

        行程(毫米)

        stroke(mm)

        130

        130

        150

        150

        頂料力(千牛)

        PowerKN

        800

        800

        1200

        1500

        主電機功率(千瓦)

        Main motor power(KW)

        110

        132

        160

        200

        壓機外形尺寸

        (毫米)

        Overal dimensions(mm)

        前后F.B

        3990

        4325

        3950

        4250

        左右L.R

        5810

        6010

        5000

        5250

        壓機地面以上尺寸(毫米)

        Height above floor(mm)

        6960

        7340

        7380

        7720
